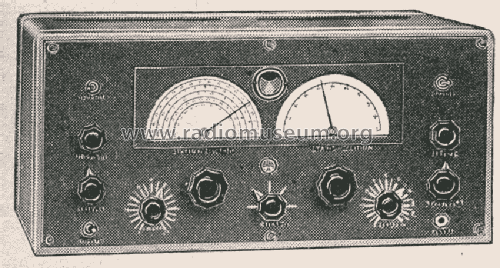

Silvertone Order= 57F 5710 or 5711 Ch= 107.450
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56530
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 5 W (unknown quality)
- from Radiomuseum.org
- Model: Silvertone Order= 57F 5710 or 5711 Ch= 107.450 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Notes
- Model 57F 5711 is with Crystal Filter.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Literature/Schematics (1)
- Riders 11-1, 2
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (# 175, Fall & Winter 1937/38, page 672.)
