Silvertone 6018 Ch= 757.20000 Order=57H U6018
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56580
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 6018 Ch= 757.20000 Order=57H U6018 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 9.5 x 5 x 5.5 inch / 241 x 127 x 140 mm
- Notes
-

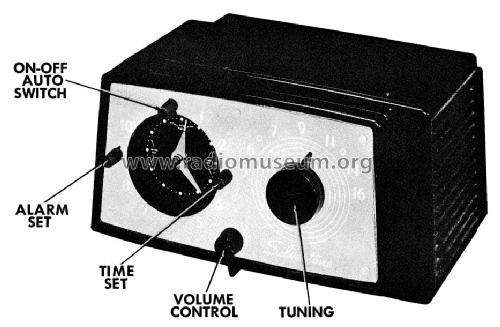

The Silvertone model 6018 with chassis 757.20000 is a simple AC operated AM superheterodyne receiver with electric clock including alarm clock. The loudspeaker is on it's right side wall.
Brown plastic cabinet.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)

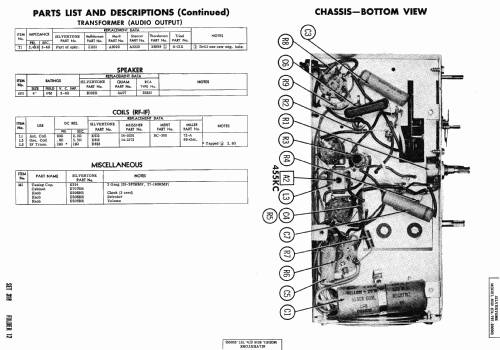

- Photofact Folder, Howard W. SAMS (Date 5-56, set 318, folder 12)
- Literature/Schematics (2)
- Sears, Roebuck Catalogs (Silvertone) (1956, page 833.)
