Silvertone Order= 57K 6103 Ch= 101.526
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56641
-
- Brand: Silvertone
Beitman

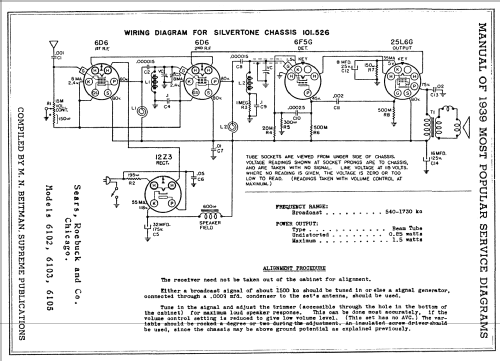

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 inch = 12.7 cm
- Power out
- 1.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone Order= 57K 6103 Ch= 101.526 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 9.75 x 7.25 x 5.75 inch / 248 x 184 x 146 mm
- Notes
- Case in ivory plaskon, "Push Button" tuning.
- Price in first year of sale
- 11.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- The Sears Silvertone Catalogs 1930-1942 (page 152)
- Literature/Schematics (1)
- Table Top Radios Vol. 1 Stein 98 (Riders 10-74)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (# 177, Fall & Winter 1938/39, page 708.)
