• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56716

• • Brand: Silvertone

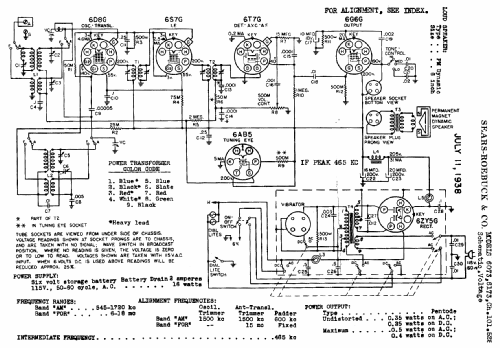

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6D8G 6S7G 6T7G 6G6G 6AB5

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / line 115 V ; Batt. 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 0.6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 6173 Ch= 101.528 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Push Buttons.

• Notes
• Vibrator for +B.

• External source of data
• Ernst Erb

• Source of data
• Machine Age to Jet Age III

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Literature/Schematics (1)
• Riders 10-6, 67, 68
