Silvertone 6179A Ch= 109.279
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56724
-
- Brand: Silvertone

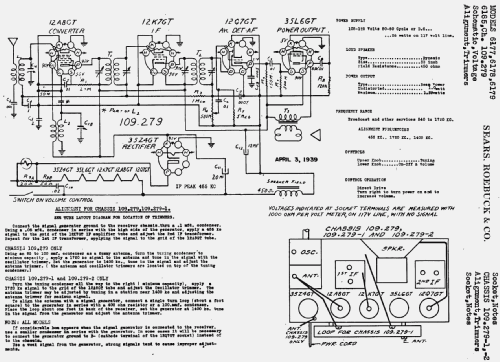

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 3.5 inch = 8.9 cm
- Power out
- 1.5 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Silvertone 6179A Ch= 109.279 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-

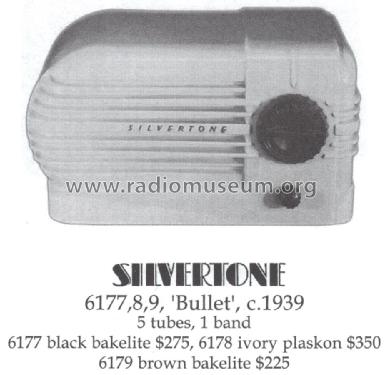

Case in brown bakelite. Built in loop antenna.
Colours and material:
model 6177: black bakelite
model 6178: ivory plaskon
model 6179: brown bakelite
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Literature/Schematics (1)
- Riders 11-22, 28
- Literature/Schematics (2)
- Table Top Radios Vol. 1 Stein 98 (page 144.)
