Silvertone 6229 Wireless
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1939/1940
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 56749
-
- Brand: Silvertone

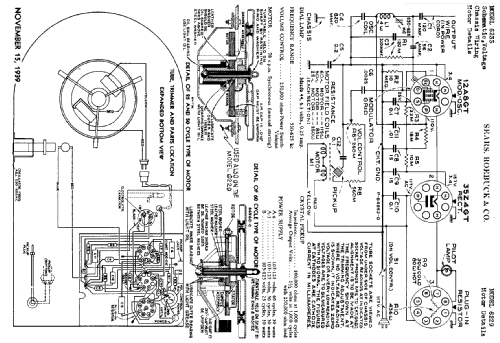

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 100-125 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Silvertone 6229 [Wireless] - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 12.5625 x 5.3125 x 8.25 inch / 319 x 135 x 210 mm
- Notes
-

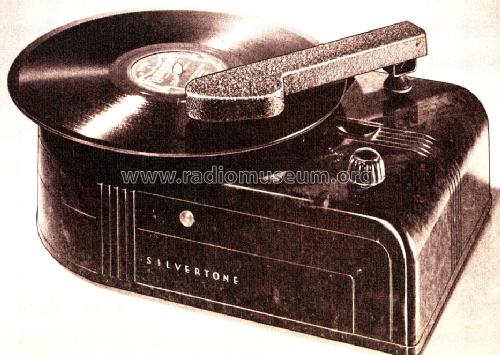

Wireless record player. Cabinet of variegated walnut Bakelite. Sold only with records!
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Literature/Schematics (1)
- Riders 11-38, 39, 40
