• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56771

• • Brand: Silvertone

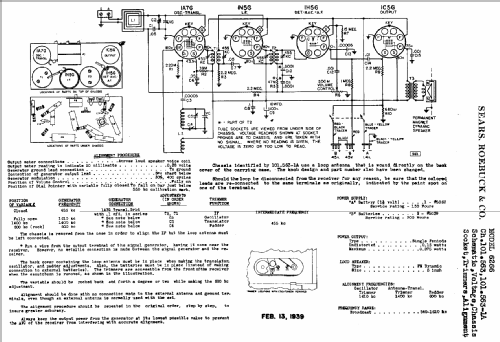

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1A7G 1N5G 1H5G 1C5G

• Main principle
• ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 90 & 1.4 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.37 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

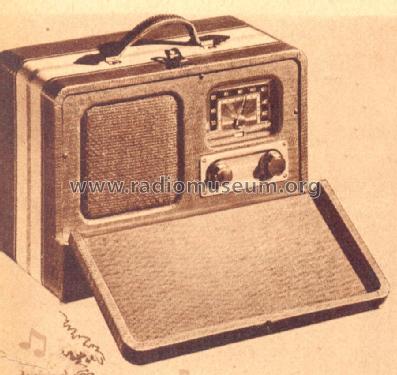

• Model: Silvertone Order= 57D 6266 Ch= 101.563 - Sears, Roebuck & Co.; Chicago

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12.75 x 9.5 x 7.5 inch / 324 x 241 x 191 mm

• Notes

• Built in loop antenna.

• Net weight (2.2 lb = 1 kg)
• 7.3 kg / 16 lb 1.3 oz (16.079 lb)

• Price in first year of sale
• 19.95 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Literature/Schematics (1)
• Riders 11-47

• Literature/Schematics (2)
• The Sears Silvertone Catalogs 1930-1942 (page 176)

• Literature/Schematics (3)

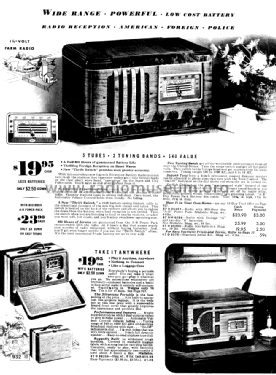

• Sears, Roebuck Catalogs (Silvertone) (# 179, Fall & Winter 1939/40, page 932.)

• Other Models

• Here you find 5487 models, 3219 with images and 4193 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
