Silvertone Order= 57D 6322 Ch= 101.571 (-1A)(-1B)
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56794
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 inch = 12.7 cm
- Power out
- 1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

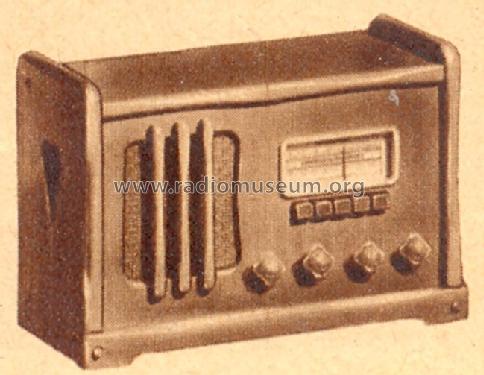

- Model: Silvertone Order= 57D 6322 Ch= 101.571 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 14.5 x 10.25 x 7 inch / 368 x 260 x 178 mm
- Notes
-
Same as model 6321 except cabinet style, this model has "Natural Maple Finish" in early american design.
- Price in first year of sale
- 20.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Literature/Schematics (1)
- Riders 11-57
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 172)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (# 179, Fall & Winter 1939/40, page 928.)
