• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56797

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6K8G 6U7G 6J5G 6J5G 6U5 6F5G 25B6G 25Z6G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 100-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 2.9 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone Order= 57D 6325 Ch= 101.572 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 16.875 x 12.875 x 10 inch / 429 x 327 x 254 mm

• Notes

• Error in "Machine Age to J.Vol.2 Stein 97", model described as 6235 should be 6325 as the picture is, see the "Sears Silvertone Catalogs" from Stein.

• Price in first year of sale
• 29.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• The Sears Silvertone Catalogs 1930-1942 (page 173, 188)

• Literature/Schematics (1)
• Machine Age to Jet Age II

• Literature/Schematics (2)
• Cathedral & Tombstone Radios (page 248.)

• Literature/Schematics (3)

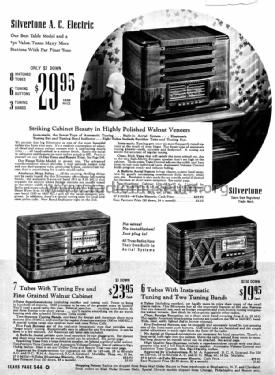

• Sears, Roebuck Catalogs (Silvertone) (#179, Fall & Winter 1939/40, page 929. #180, Spring & Summer 1940, page 544.)
