Silvertone Order= 57D 6360 Ch= 101.579
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56822
-
- Brand: Silvertone

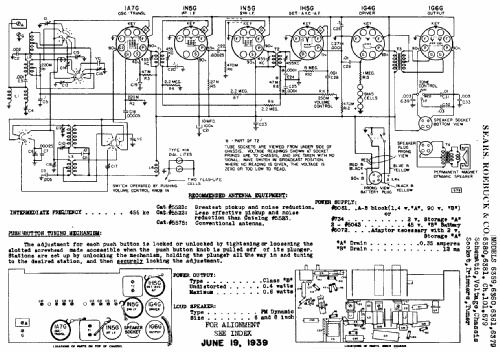

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / 90 & 2 or 1.4 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 0.6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

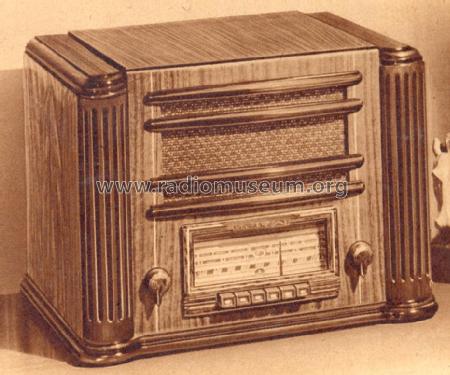

- Model: Silvertone Order= 57D 6360 Ch= 101.579 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 18.125 x 13 x 13.25 inch / 460 x 330 x 337 mm
- Notes
-
This model includes dry "A-B" battery power pack, see also model 6359 and model 6361. Speaker 6 or 8 inch. Bias Cells.
- Price in first year of sale
- 29.94 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- Machine Age to Jet Age II
- Literature/Schematics (1)
- Machine Age to Jet Age III (Riders 11-81, 82)
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 175, 190)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#179, Fall & Winter 1939/40, page 931. #180, Spring & Summer 1940, page 546.)
- Literature/Schematics (4)

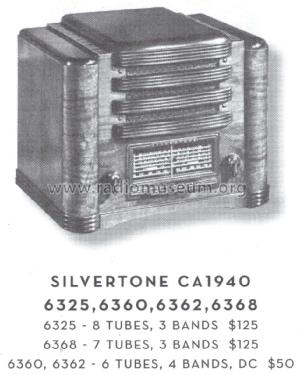

- Cathedral & Tombstone Radios (page 248.)
