• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1939–1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56824

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1A7G 1N5G 1N5G 1H5G 1G4G 1G6G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 0.6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

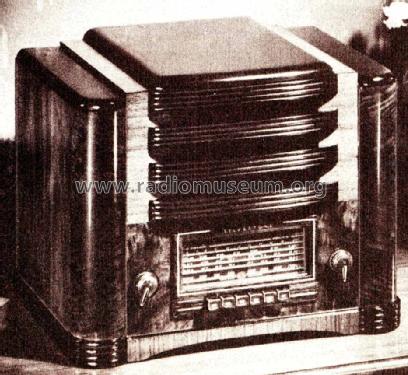

• Model: Silvertone Order= 57D 6362 Ch= 101.581 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 17.375 x 13.75 x 13 inch / 441 x 349 x 330 mm

• Notes

• This model was sold without batteries, see also model 6363 and model 6364. Broadcast 550 to 1700 kc.



• Price in first year of sale
• 32.75 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Machine Age to Jet Age II

• Literature/Schematics (1)
• Cathedral & Tombstone Radios (page 248.)

• Literature/Schematics (2)
• The Sears Silvertone Catalogs 1930-1942 (page 174, 191, 202)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (#179, 1939/40, page 930. #180, 1940, page 547. #181, 1940/41 page 624.)
