Silvertone Order= 57DM 6364 Ch= 101.581
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1939–1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56829
-
- Brand: Silvertone
Beitman
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 0.6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57DM 6364 Ch= 101.581 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 17.875 x 13.75 x 13 inch / 454 x 349 x 330 mm
- Notes
-
This model includes one storage "A" battery and two "B" batteries, see also model 6362 and model 6363.
- Price in first year of sale
- 39.39 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Mentioned in
- Machine Age to Jet Age II
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 174, 191, 202)
- Literature/Schematics (3)

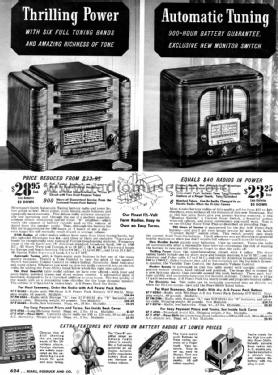

- Sears, Roebuck Catalogs (Silvertone) (#179, 1939/40, page 930. #180, 1940, page 547. #181, 1940/41 page 624.)
