Silvertone Order= 57F 6372 Ch= 110.991
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56832
-
- Brand: Silvertone

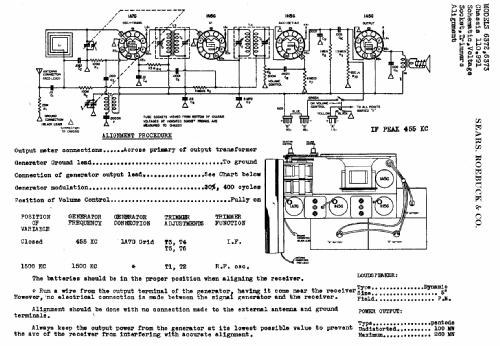

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 2 x 45 & 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57F 6372 Ch= 110.991 - Sears, Roebuck & Co.; Chicago
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 12 x 7.5 x 7.75 inch / 305 x 191 x 197 mm
- Notes
-
This model was sold witouth any batteries. Built in loop antenna. Tuning Band 540 to 1630 kc. See also model 6373 with dry batteries.
- Price in first year of sale
- 12.25 $
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- The Sears Silvertone Catalogs 1930-1942 (page 201)
- Literature/Schematics (1)
- Riders 11-84
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#181, Fall & Winter 1940/41, page 623.)
