Silvertone Order= 57DM 6379 Ch= 101.579
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56834
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Storage and/or dry batteries / 90 & 1.4 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 0.6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57DM 6379 Ch= 101.579 - Sears, Roebuck & Co.; Chicago
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 27.5 x 33.5 x 10.5 inch / 699 x 851 x 267 mm
- Notes
-
Speaker 6 or 8 inch. Broadcast 550 to 1700 kc. See also model 6380 and model 6381.
- Price in first year of sale
- 32.75 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Literature/Schematics (1)
- Riders 11- 81, 82
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 174/175, 190)
- Literature/Schematics (3)

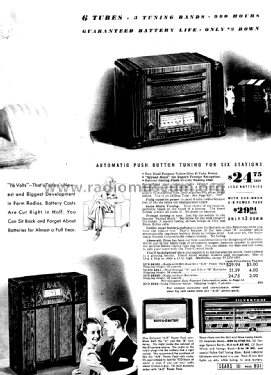

- Sears, Roebuck Catalogs (Silvertone) (#179, Fall & Winter 1939/40, page 930/931. #180, Spring & Summer 1940, page 546.)
