Silvertone Order= 57D 6400 Ch= 101.565

Sears, Roebuck & Co.; Chicago (IL)

  • Year
  • 1939/1940
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 56839
    • Brand: Silvertone

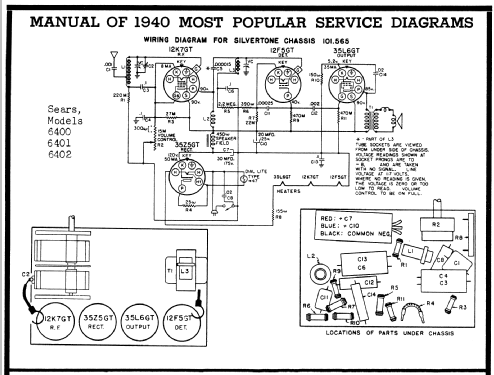

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 105-125 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet. / Ø 3.5 inch = 8.9 cm
  • Power out
  • 0.85 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Silvertone Order= 57D 6400 Ch= 101.565 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 6.3125 x 4.75 x 4.375 inch / 160 x 121 x 111 mm
  • Notes

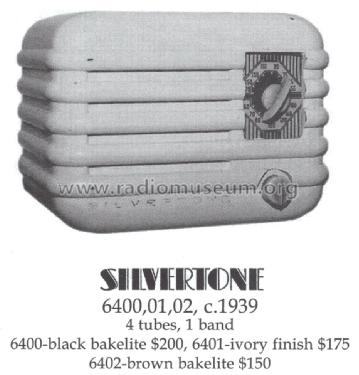

  • This Silvertone belongs to a family with only different colors: The Sears Silvertone model 6400 is in Black, model 6401 is in Ivory and model 6402 is in Walnut.

  • Price in first year of sale
  • 6.49 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 11 = ca. 1940 and before
