Silvertone 6421 Ch= 101.571
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56859
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 100-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Power out
- 1.8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

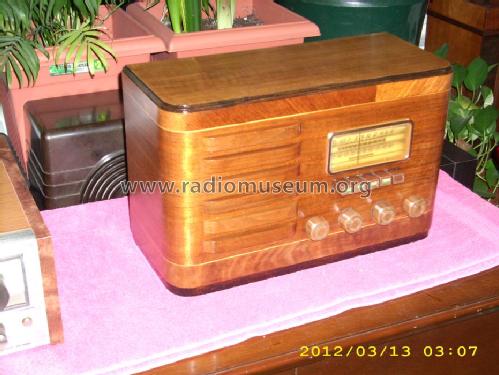

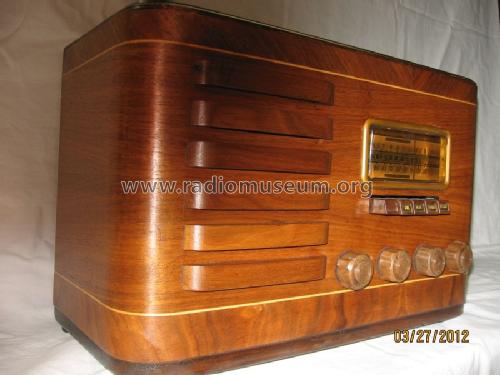

- Model: Silvertone 6421 Ch= 101.571 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 15 x 9.4375 x 6.5 inch / 381 x 240 x 165 mm
- Notes
-
Broadcast Band 550 to 1600 kc.15
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- Machine Age to Jet Age II
