• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56867

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6U7G 6K8G 6U7G 6Q7G 6U5 6P5G 6P5G 6P5G 6AC5G 6AC5G 5X4G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 100-125 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 12 inch = 30.5 cm

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

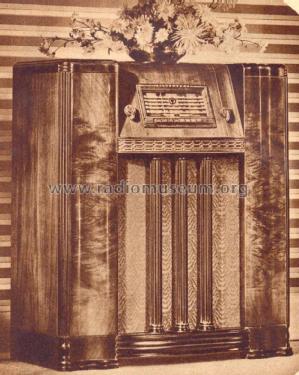

• Model: Silvertone Order= 57EM 6438 Ch= 101.583 - Sears, Roebuck & Co.; Chicago

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 30 x 34 x 13.25 inch / 762 x 864 x 337 mm

• Notes

• Broadcast 550 to 1700 kc.

• Price in first year of sale
• 59.95 $

• External source of data
• Ernst Erb

• Source of data
• Pre-War Consoles

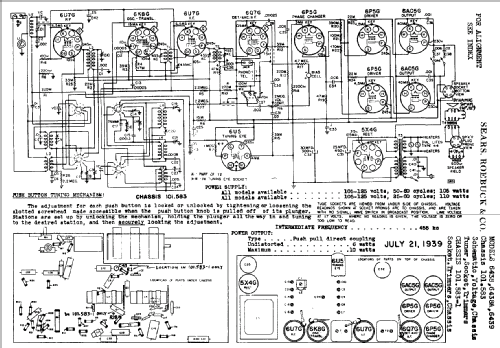

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Literature/Schematics (1)

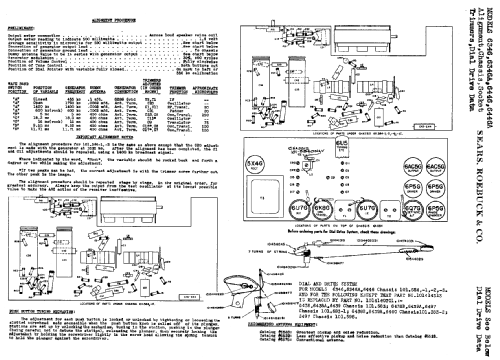

• Riders 11-72, 82, 89

• Literature/Schematics (2)
• The Sears Silvertone Catalogs 1930-1942 (page 184)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (# 180, Spring & Summer 1940, page 541A.)
