• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82451

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BJ6 12BE6 6BJ6 12AV6 50C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 - 120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

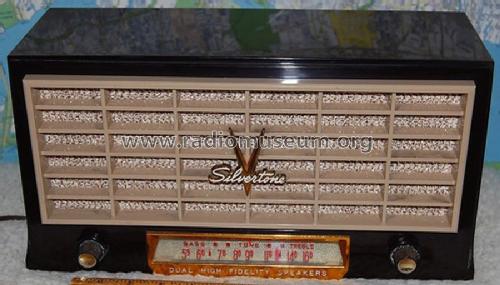

• Model: Silvertone Dual High Fidelity Speakers 7013 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 15.5 x 8.125 x 6 inch / 394 x 206 x 152 mm

• Notes

• The Sears, Roebuck & Co. Model Silvertone 7013, Chassis 132.40100 is an AC/DC Operated AM Receiver. The Silvertone model Order= 57K 7013 is Brown ($32.95), and model Order= 57K 7014 is Ivory  ($34.95).

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 17, 1957

• Mentioned in
• Machine Age to Jet Age II

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 2-57, Set 347, Folder 16)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (page 866)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
