Silvertone 7018 Ch= 528.46500
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 83151
-
- Brand: Silvertone

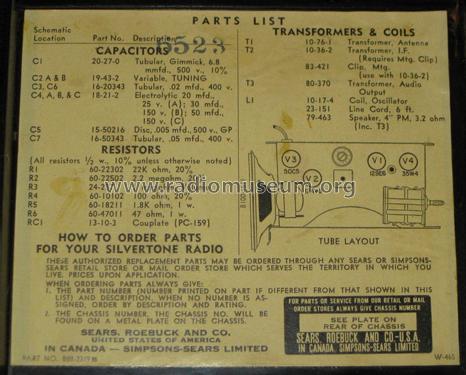

Picture courtesy of guest Anna Samuelian.

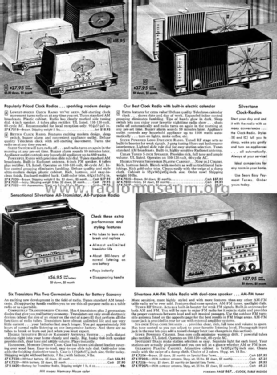

Scanned from the Sears Catalog page 867.
Scanned from the Sears Catalog page 867.
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.

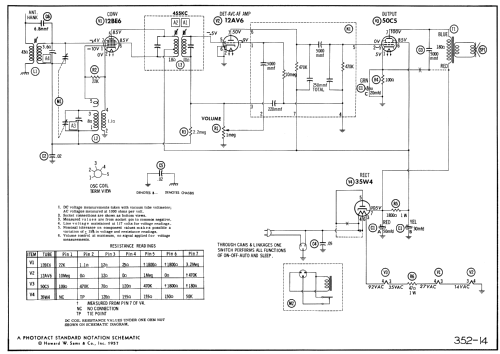

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 7018 Ch= 528.46500 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 9.125 x 5.125 x 5 inch / 232 x 130 x 127 mm
- Notes
-
In Brown plastic case.
- Price in first year of sale
- 18.95 $
- Circuit diagram reference

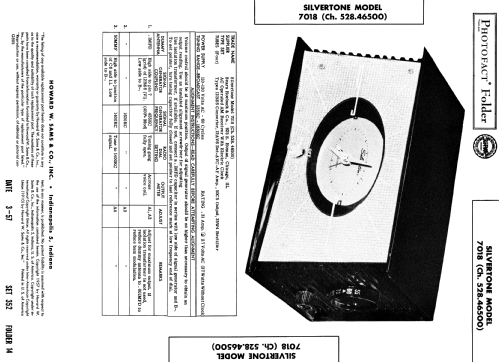

- Beitman Radio Diagrams Vol. 17, 1957
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (page 867)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
