Silvertone 7037 Order= 57K 7037 Ch= 141.415

• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56949

• • Brand: Silvertone

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 7H7 6SK7GT 6J5GT 6SQ7GT 6SQ7GT 6K6GT 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / Either transformer: 25 cycles, 100 to 125V or 50 to 60 cycles, 100 to 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• Power out
• 2.5 W (3.7 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 7037 Order= 57K 7037 Ch= 141.415 - Sears, Roebuck & Co.; Chicago

• Shape

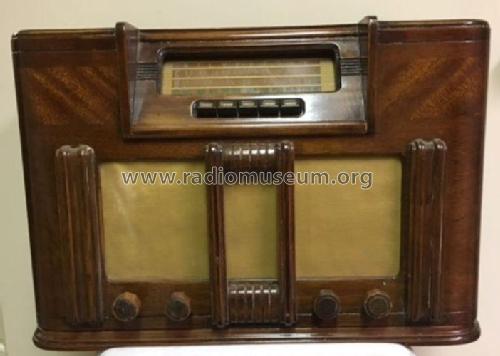

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 17.875 x 12 x 9 inch / 454 x 305 x 229 mm

• Notes

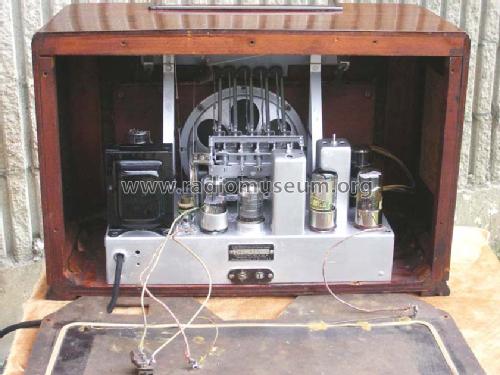

• The Sears Silvertone 7037 is an AC operated 7 tube BC, Police and SW band receiver. Has switch on rear of cabinet that selects between the internal loop antenna and an external antenna.

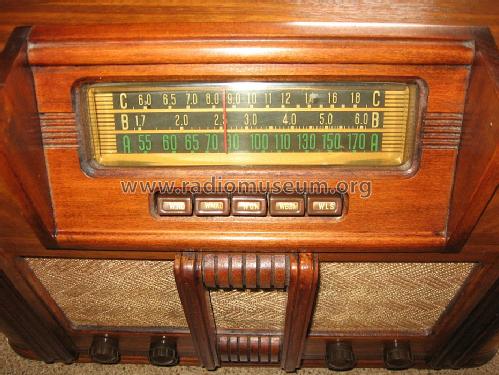

  Band Frequency Ranges are as follows:
  BC Band (Band A).............540-1700kHz
  Police Band (Band B)........1.7-6.0MHz
  SW Band (Band C)............6.0-18.1MHz

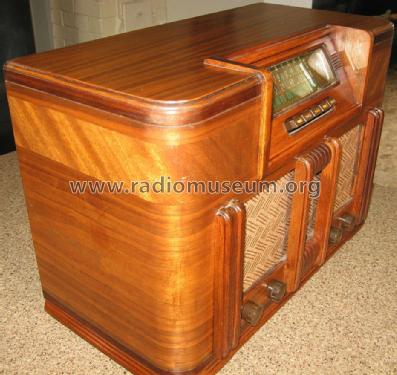

  Catalog states: An extra sensitive, rich toned Silvertone that incorporates Automatic Bass Compensation and other expensive features in a luxurious cabinet of selected Sliced Walnut and Sapeli veneers.  Hand-rubbed to bring out the beauty of their fine grain.  New low noise converter reduces hissing on weak or distant stations.

  See details and summaries about Sears catalogs etc.

• Price in first year of sale
• 25.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Mentioned in
• The Sears Silvertone Catalogs 1930-1942 (page 218)

• Literature/Schematics (1)
• Machine Age to Jet Age II (Riders (Sears)13-64, 86)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (#183, Fall & Winter 1941/42, page 838.)
