• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56964

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7B7 14Q7 7B7 7C6 50A5 35Y4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Power out
• 1.9 W (unknown quality)

• Material

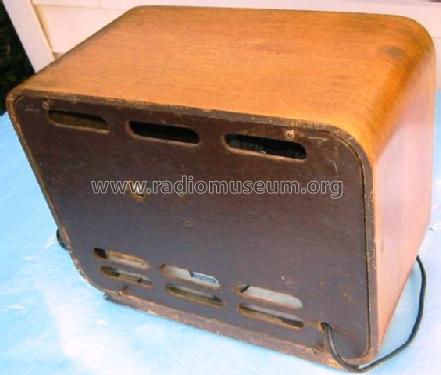

• Wooden case

• from Radiomuseum.org

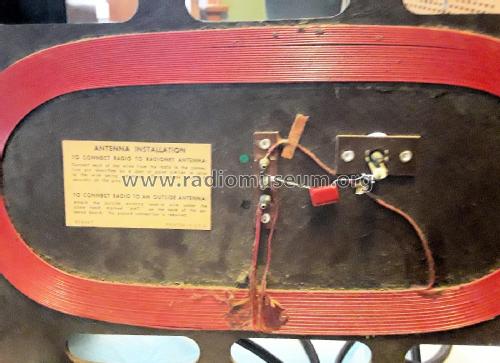

• Model: Silvertone 7054 Ch= 101.808 - Sears, Roebuck & Co.; Chicago

• Shape

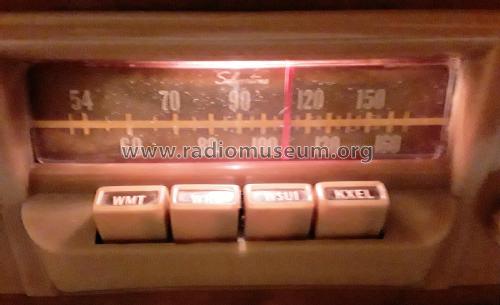

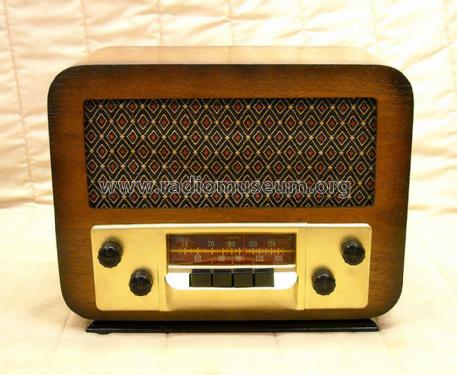

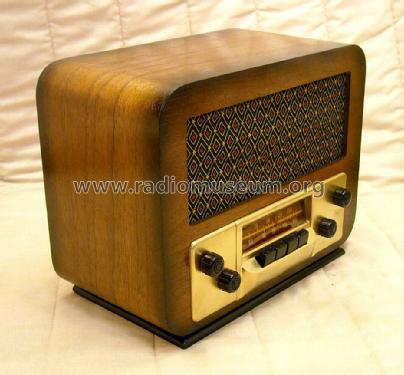

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 12.5 x 10 x 6.75 inch / 318 x 254 x 171 mm

• Notes
• This model Silvertone 7054 with chassis 101.808 has not to be confused with other models #7054 which have different chassis. See also Sams Photofact Folders - Set 15, Folder 475-31. And: The models 8052 and 8053 are quite similar.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Machine Age to Jet Age II (, Beitman)
