Silvertone Order= 57KM 7068 Ch= 101.681
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56982
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Details
- Recording phonogr.-Disc Recorder
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Power out
- 6.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

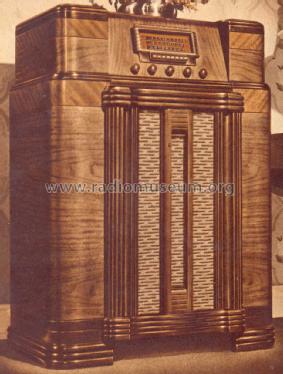

- Model: Silvertone Order= 57KM 7068 Ch= 101.681 - Sears, Roebuck & Co.; Chicago
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 28.5 x 39 x 15.625 inch / 724 x 991 x 397 mm
- Notes
-
Built in loop antenna. With Home Recorder. See also Silvertone model 7067 Ch= 101.662 without Home Recorder.
- Price in first year of sale
- 99.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Mentioned in
- Pre-War Consoles
- Literature/Schematics (1)
- Riders 14-33, 34, 35
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 215)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#183, Fall & Winter 1941/42, page 835.)
