Silvertone 7127 early Echophone
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57047
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 7127 early [Echophone] - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes

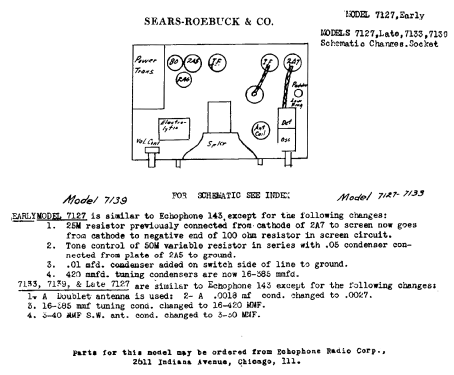

- Silvertone 7127 early, manufactured by Echophone (= model 143). Must not be confused with the completely different Silvertone model 7127 of 1941.
- External source of data
- Ernst Erb
- Circuit diagram reference

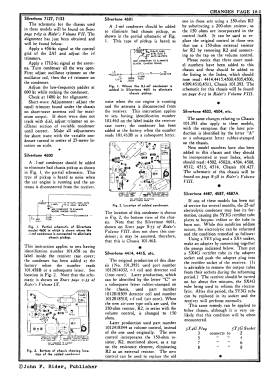

- Rider's Perpetual, Volume 7 = 1936 and before
- Literature/Schematics (1)
- Riders 7-63 , Riders , Riders 5-4 Echophone
