Silvertone 7153
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57063
-
- Brand: Silvertone

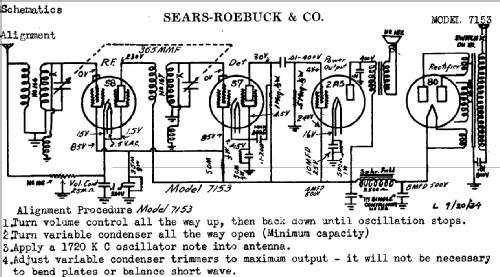

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 25 cycle, 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: Silvertone 7153 - Sears, Roebuck & Co.; Chicago
- Notes
-
The Sears Silvertone 7153 is an AC operated 4 tube BC band receiver.
See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Corona Radio and Television Corp., Chicago, Ill (Sears Manufacturer Source Number Code 104).
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Literature/Schematics (1)
- Rider's Perpetual, Volume 7 = 1936 and before (Riders 7-9)
- Literature/Schematics (2)
- Silvertone Radios, Service Inf. 1928 thru 1936 (Pages 932 to 933)
