Silvertone 7216 Ch= 151.10000 Order=57P 7216 (Japan 712)

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 108498
    • Brand: Silvertone

 Technical Specifications

  • Number of Transistors
  • 7
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 2 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.625 inch = 4.1 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Silvertone 7216 Ch= 151.10000 Order=57P 7216 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 1.625 x 2.625 x 0.75 inch / 41 x 67 x 19 mm
  • Notes

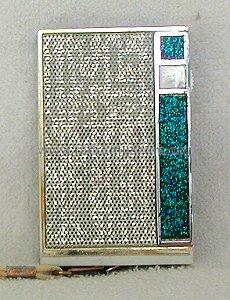

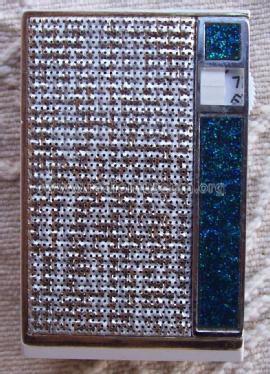

  • The Sears Silvertone 7216 is a battery operated 7 transistor portable AM radio.  The AM band frequency tuning range is 540-1620kHz.  Has push-pull output stage and earphone jack that disconnects the speaker for private listening. The cabinet is white with a black back, peacock blue front panel and white and gold color metal grille.

    Made in Japan 712



  • Price in first year of sale
  • 16.95 $
  • Mentioned in
  • -- Collector info (Sammler)
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
