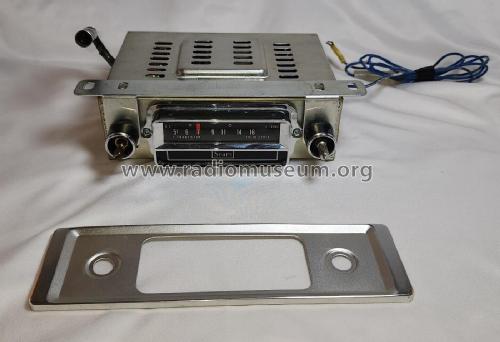

7 Transistor Solid State 833-625580 (Japan 711)

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1970 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 350713
    • Brand: Silvertone

 Technical Specifications

  • Number of Transistors
  • 7
  • Semiconductors
  • Main principle
  • Superhet with RF-stage; ZF/IF 452.5 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 2.2 W (max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 7 Transistor Solid State 833-625580 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 160 x 50 x 150 mm / 6.3 x 2 x 5.9 inch
  • Notes

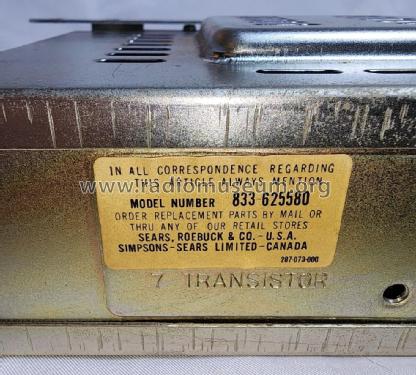

  • All Transistor Universal Car Radio Model Sears 833.625580

    Tuning Range 535 - 1605 kHz

    Reversible Switch for positive or negative ground

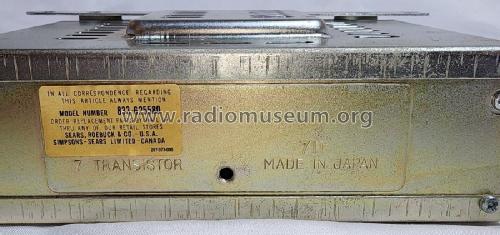

    Made in Japan 711



  • Net weight (2.2 lb = 1 kg)
  • 1.2 kg / 2 lb 10.3 oz (2.643 lb)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
