Silvertone 8038 Ch= 528.53071 Order=57Y 08038K

Sears, Roebuck & Co.; Chicago (IL)

  • Year
  • 1959–1961 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 88412
    • Brand: Silvertone

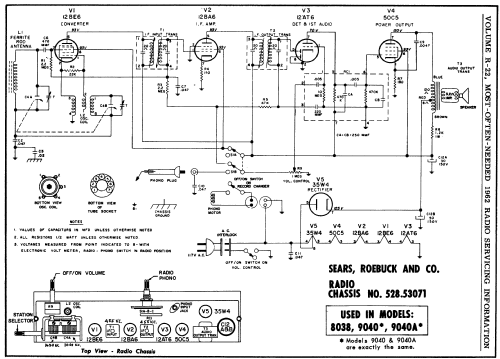

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Silvertone 8038 Ch= 528.53071 Order=57Y 08038K - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 15.5 x 8.375 x 17.625 inch / 394 x 213 x 448 mm
  • Price in first year of sale
  • 47.95 $
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 22, 1962
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
