Silvertone 8053 Ch= 101.808-1D
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57200
-
- Brand: Silvertone

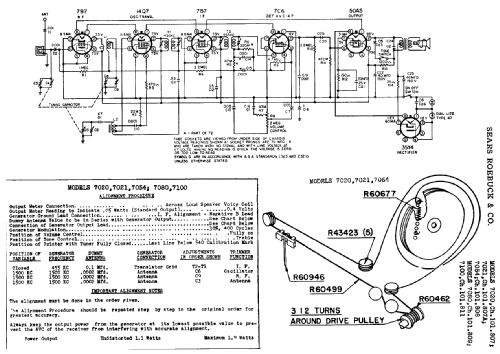

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
- Power out
- 1.9 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 8053 Ch= 101.808-1D - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 18 = 1949 and before
- Literature/Schematics (1)
- Rider's Perpetual, Volume 16 = covering late 1946 to early 1947 (Riders 16-1, 2, 3 ; Changes 18-11)
