Silvertone 8086A Ch=101.814-6C
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57211
-
- Brand: Silvertone
Beitman
SAMS Photofact Volume 7 Folder 499-18

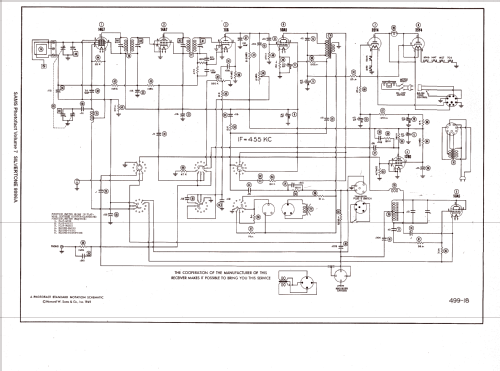

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Wire Recorder (or -Player)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 8086A Ch=101.814-6C - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes
- Röhre 1280 NF Pentode VF 12,6 IF 0,15A Laut Brans Vademecum 1950
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference

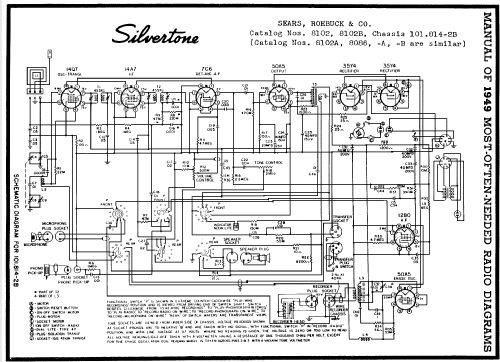

- Rider's Perpetual, Volume 18 = 1949 and before
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 09, 1949
- Literature/Schematics (2)

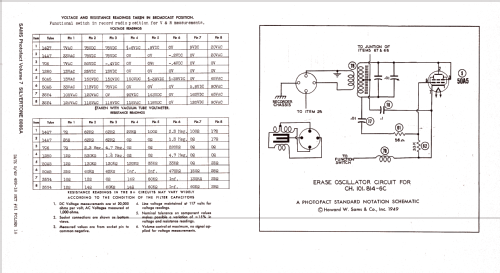

- Photofact Folder, Howard W. SAMS (Set #61 Folder 18 dated 5-49)
