Silvertone 8107 + 8107A Ch= 101.851

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1948–1950
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 77287
    • Brand: Silvertone

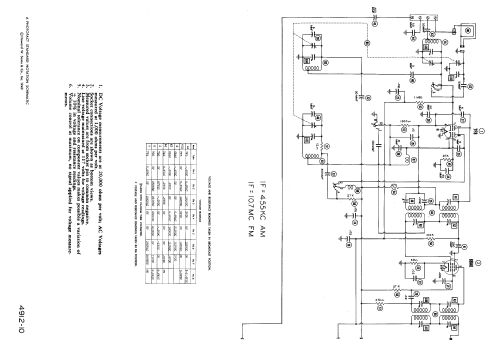

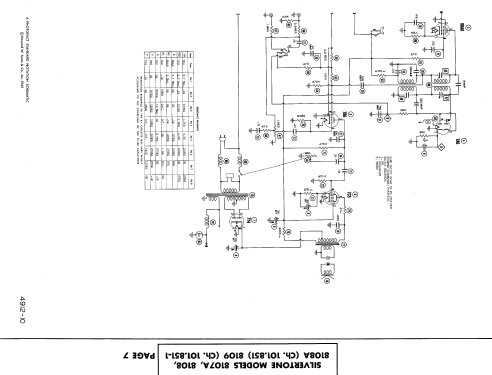

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455.10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.625 inch = 19.4 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone 8107 + 8107A Ch= 101.851 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 29.25 x 32 x 15.75 inch / 743 x 813 x 400 mm
  • Notes

  • The Silvertone model 8107A (in Mahogany finish) from Sears, Roebuck & Co. builds according to Photoshop (Date 6-49, 4912-10, set 64, folder 10) with its technical data the following family: 8107A, 8108 and 8108A with chassis 101.851 and 8109 with chassis 101.851-1. They all are AC operated combination phono-radios with AM-FM receiver and loop antenna.

    See also Silvertone model 8108 in Walnut finish.

  • Price in first year of sale
  • 149.95 $
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 9, 1949
