Silvertone 8157 Ch= 528.51175
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 198019
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 6AF4A 2CY5 5U8 3BZ6 3BZ6 5AM8 6BH8 5U8 6BN8 6AQ5 6CM7 6CG7 12AV5GA 12AX4GTA 1B3GT 24AEP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 8157 Ch= 528.51175 - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Silvertone model 8157 is a 24" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 528.51175, VHF-UHF tuner 95-141-0 and picture tube 24AEP4.
- Literature/Schematics (1)

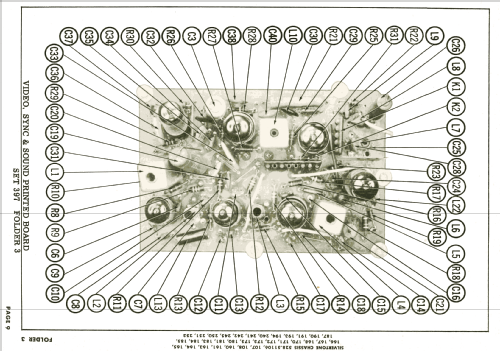

- Photofact Folder, Howard W. SAMS (Date 5-58, Set 397, Folder 3)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
