• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1957 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 314595

• • Brand: Silvertone

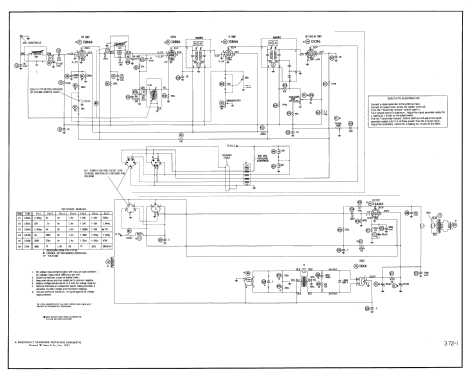

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BA6 6BE6 6BA6 6CR6 6AQ5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 262 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Allstate 5028 Ch= 528.50281 - Sears, Roebuck & Co.; Chicago

• Shape
• Chassis only or for «building in»

• Notes

• Allstate model 5028 is a battery operated universal type AM automobile receiver.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 372 Folder 1 dated 9-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
