Silvertone Granada Order= 57FM 1174 or 1175

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1931/1932
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 55787
    • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • TRF without regeneration; Screengrid 1926-1935
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone Granada Order= 57FM 1174 or 1175 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 24.375 x 38.5 x 14.25 inch / 619 x 978 x 362 mm
  • Notes

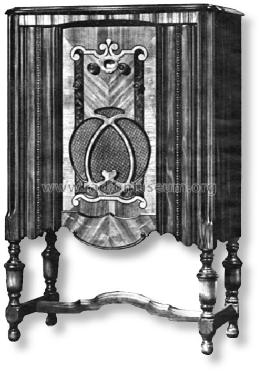

  • The Sears Silvertone Granada was "perfected by Dr. Lincoln Walsh" and has the "new multi-mu tubes" for exclusive high efficiency tuned stages, tone control and push-pull output. Triple Screen Grid Circuit with a "super dynamic speaker". "The cabinet is of beautiful walnut finish with Tarso process front - which reproduces costly inlaid woods." 4-legged stretcher base type Low-Boy. The same console is offered also as 57FM1401 with a Super-Heterodyne Chassis.
    Order number 57FM 1174 1/4 without tubes or accessories for $ 43.50 or 57FM 1175 1/4 with all tubes and aerial for 49.90, for easy payment: $ 6 "down" cash and $ 5 per month until paid $ 54.90. See details and summaries about Sears catalogs etc.
  • Price in first year of sale
  • 43.50 $ +
  • External source of data
  • Ernst Erb
