Meteor 4109A Ch= 528.34801
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1955 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 329540
-
- Brand: Silvertone

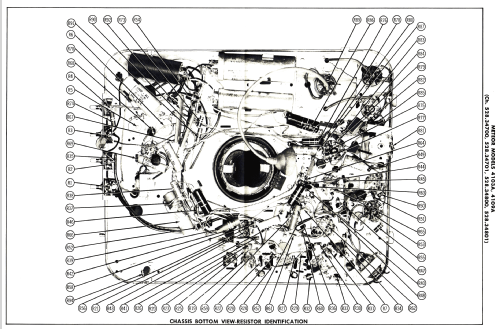

Picture from service manual.

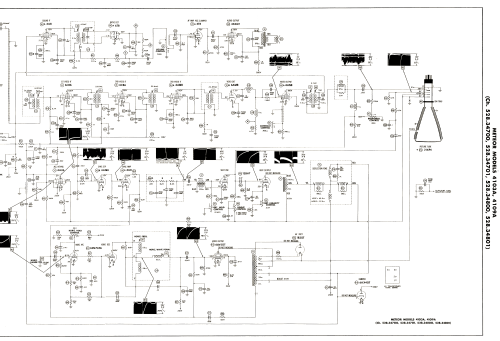

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 6BC5 6J6 6CB6 6CB6 6AM8 6AN8 6AU6 6U8 6T8 6K6GT 12BH7 6SN7GTA 6AV5GT 6AX4GT 1B3GT 21XP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Meteor 4109A Ch= 528.34801 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Meteor model 4109A is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis 528.34801, VHF tuner T95-42 and picture tube 21XP4.
