Silvertone 2016 Ch= 132.021 Order=57G 02016

• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1952–1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142282

• • Brand: Silvertone

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet, double/triple conversion; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 2016 Ch= 132.021 Order=57G 02016 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 13.875 x 6.75 x 6.5 inch / 352 x 171 x 165 mm

• Notes

• Cabinet= Ivory. See also the Silvertone model 2015 in Brown or model 2014 in Green.


• Price in first year of sale
• 28.50 $

• Literature/Schematics (1)

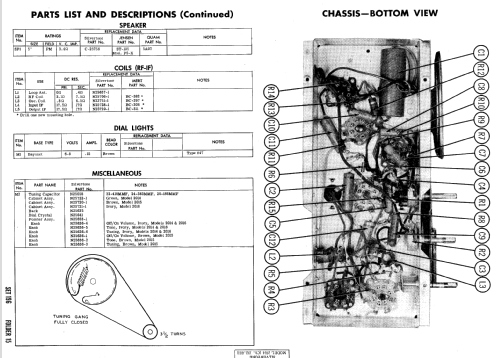

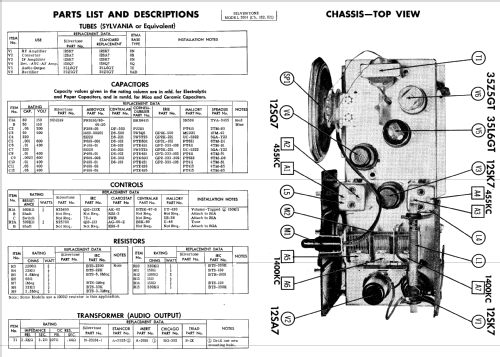

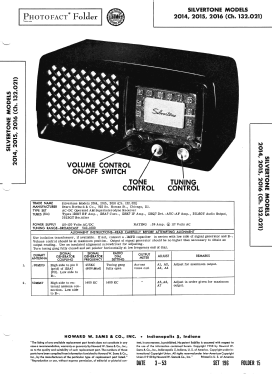

• Photofact Folder, Howard W. SAMS (Date 3-53, Set 196, Folder 15)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (1952/53 page 855, 1953/54 page 886, 1954 page 774, 1954/55 page 918.)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Spring & Summer 1955, page 778.)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
