Silvertone 1021 Ch= 132.50601 Order=57X 1021
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 251084
-
- Brand: Silvertone
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz; 2 AF stage(s)
- Tuned circuits
- 8 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- AC/DC-set / Either AC: 60 cycles, 110 to 120V or DC: 110 to 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 1021 Ch= 132.50601 Order=57X 1021 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 13 x 5 x 4 inch / 330 x 127 x 102 mm
- Notes
-

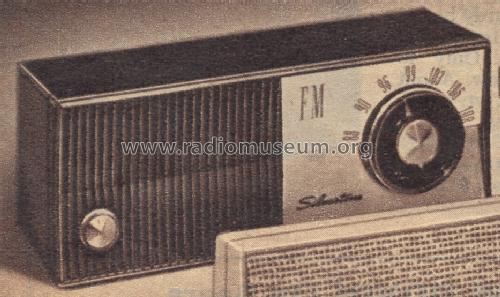

The Sears Silvertone 1021 is an AC/DC operated 6 Tube FM only Receiver. The FM band tuning range is 88 to 108MHz. Cabinet color is Mint Green and Ivory with silver color trim.
The following models use the same schematic and chassis:
Model Cabinet Color 1020 Two Tone Gray 1021 Mint Green and Ivory 1022 Brown See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks, Ind. (Sears Manufacturer Source Number Code 132).
- Price in first year of sale
- 22.95 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 529, Folder 12 Date 5-61)
- Literature/Schematics (2)
- Sears, Roebuck Catalogs (Silvertone) (Winter 1961, page 92.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
