Silvertone 104-5BL, GY, TA Ch= 528.51641, -643, -645, -647
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 156232
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 104-5BL, GY, TA Ch= 528.51641, -643, -645, -647 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes
- 21" or 17" b/w Television Receiver, Picture tube: 21DHP4 or 17CTP4, Some models are equipped with continuous UHF tuner, tube quantity UHF: 16
Tuning Range: TV - Channels 2 thru 13 VHF, 14 thru 84 UHF.
- Literature/Schematics (1)

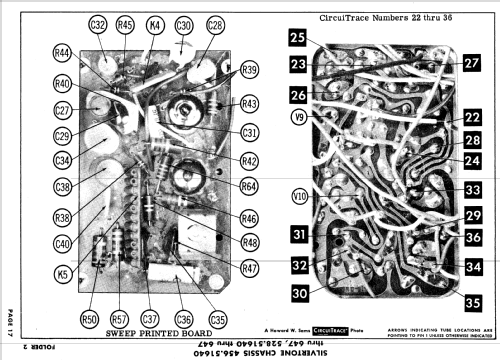

- Photofact Folder, Howard W. SAMS (Date 10-59, Set 459, Folder 2)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
