Silvertone 1055 Ch= 132.012 Order=57FM 1055
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1951–1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 129912
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 1055 Ch= 132.012 Order=57FM 1055 - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 21 x 31.25 x 15.375 inch / 533 x 794 x 391 mm
- Notes
-
The Silvertone models 1054 in Mahogany and 1055 in Limed Oak with chassis 132.012 (153O12) are AC operated AM-FM radio-phono combinations. Quite a similar case show also the Silvertone models 1052 in Mahogany and 1053 in Limed Oak without FM.
- Price in first year of sale
- 134.95 $
- Literature/Schematics (1)

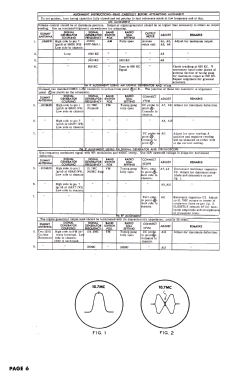

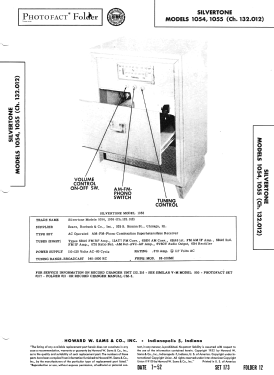

- Photofact Folder, Howard W. SAMS (Date 7-52, set 173, folder 12)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (Mid-Season/Fall 1951, page 287. Fall & Winter 1952/53, page 861.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
