Silvertone 1057 Order=57G M1057
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 249346
-
- Brand: Silvertone
- Number of Tubes
- 8
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org

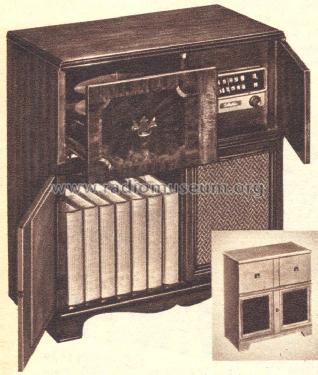

- Model: Silvertone 1057 Order=57G M1057 - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 30.625 x 32.125 x 15.625 inch / 778 x 816 x 397 mm
- Notes
-
Color: Mahogany. Same as model 1058, but tunes AM-Short Wave (540 KC-32 MC).
- Price in first year of sale
- 169.95 $
- Mentioned in
- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1952, page 860.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
