Silvertone 10 Ch= 132.45601 Order=57K 10

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1959/1960 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 151317
    • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 110 - 120 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Silvertone 10 Ch= 132.45601 Order=57K 10 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 14 x 6 x 4 inch / 356 x 152 x 102 mm
  • Notes

  • The Sears Silvertone 10 is an AC/DC operated 5 tube BC band receiver. The BC band tuning range is 540 to 1670kHz. Has Qty(2) PM 4" speakers. Has record player jack.

    The following models use the same schematic:

    Model Chassis Cabinet Color
    7 132.45601 Brown
    7 132.45602 Brown
    8 132.45601 Ivory
    8 132.45602 Ivory
    9 132.45601 Coral
    9 132.45602 Coral
    10 132.45601 Ice Blue
    10 132.45602 Ice Blue

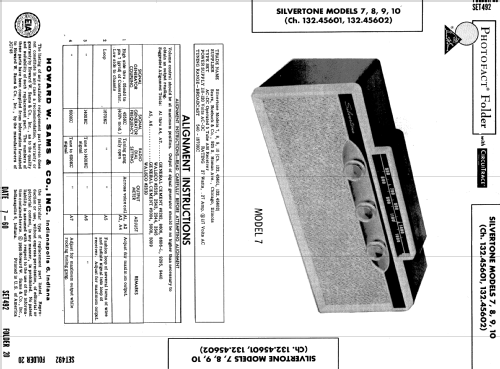

    AC - DC operated AM receiver. Sams photofact set 492 folder 20 date 7-60 features the Silvertone models 7, 8, 9 and 10, all with 2 different chassis 132.45601 and 132.45602 with the same schematic.

    See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks, Ind. (Sears Manufacturer Source Number Code 132).

  • Price in first year of sale
  • 27.95 $
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
