• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 358123

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6BK7 or 6AG5 or 6BC5 6J6 6CB6 6CB6 6AG5 or 6CB6 6AC7 or 6AH6 or 6CB6 6AU6 6T8 6AQ5 12AU7 6SN7GTA 6S4 6AL5 6SN7GTA 6BG6G 6W4GT 1B3GT 5U4G 20CP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 1184-20 Ch= 528.631-1 - Sears, Roebuck & Co.; Chicago

• Shape
• Console with any shape - in general

• Notes

• Silvertone model 1184-20 is a 20” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 528.631-1,  VHF tuner T95-29 and picture tube 20CP4.



• Literature/Schematics (1)

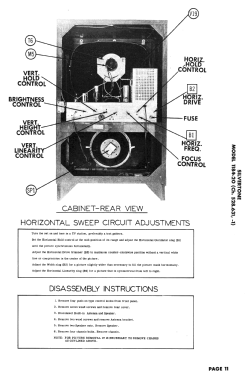

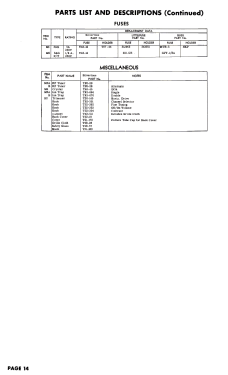

• Photofact Folder, Howard W. SAMS (Set 181, folder 13, dated 10-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
