• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1960–1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107916

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N194 2N94 2N233 2N306 2N1059 2N1059

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 1202 Ch= 132.50801 or 132.50802 Order=57H 1202 - Sears, Roebuck & Co.; Chicago

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 68 x 114 x 32 mm / 2.7 x 4.5 x 1.3 inch

• Notes

• The Sears Silvertone 1202 is a battery operated 6 transistor AM pocket radio. The AM band tuning range is 540 to 1650kHz. Has earphone jack which disconnects the speaker for private listening. Also has push-pull output stage.  Cabinet color is black with gold color trim. The earphone and tan hard leather case were sold separately.

  The following models use the same schematic:

  Model	Cabinet Color
  1202	Black
  1203	Mint Green
  1204	Red

  See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks, Ind. (Sears Manufacturer Source Number Code 132).

• Net weight (2.2 lb = 1 kg)
• 0.260 kg / 0 lb 9.2 oz (0.573 lb)

• Price in first year of sale
• 15.95 $

• Mentioned in
• Photofact Folder, Howard W. SAMS (SET 549 Folder 13 Date 10.61)

• Literature/Schematics (3)

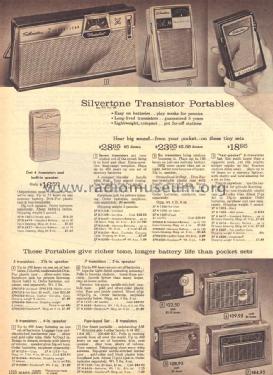

• Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1960, page 1310.)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Winter Sale 1961, page 92.)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
