Silvertone 133
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 353282
-
- Brand: Silvertone

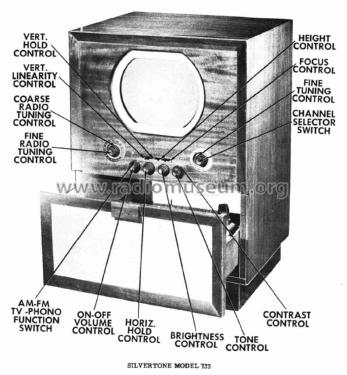

Picture from service manual.

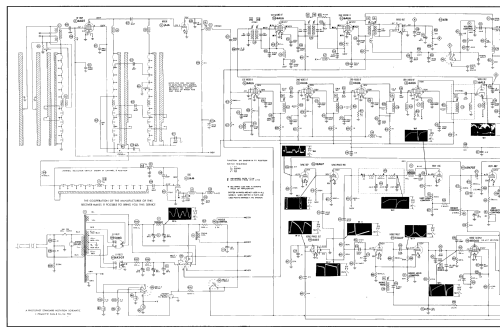

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 30
- Valves / Tubes
- 6AG5 6J6 6AU6 6AU6 6AU6 6AU6 6AL5 6AU6 6C4 6K6GT 6AU6 6AU6 6AU6 6T8 6V6GT 12AU7 6SN7GT 6AL5 12AU7 6BG6G 6W4GT 1B3 6X5GT 5U4G 12AT7 6BE6 6BA6 6BA6 6AL5 12LP4 or 12LP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 133 - Sears, Roebuck & Co.; Chicago
- Shape
- Console with any shape - in general
- Notes
-
Silvertone model 133 is a 12” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with TV-FM-AM-phono combination receiver, a VHF tuner and picture tube 12LP4 or 12LP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 156, folder 12, dated 1-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
