• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1954 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 182392

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes

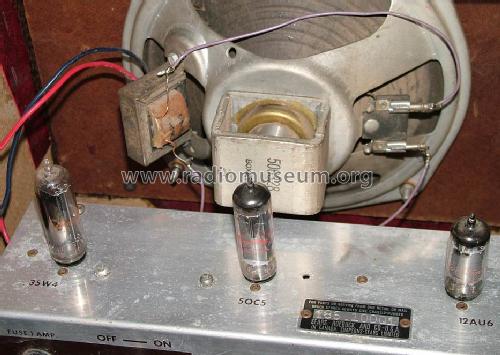

• 12AU6 50C5 35W4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 2 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Silvertone 1430 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 330 x 380 x 180 mm / 13 x 15 x 7.1 inch

• Notes
• Musiker-Verstärker, mit Heiz-Transformator, keine Netztrennung

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Author
• Model page created by Hannes Gerber. See "Data change" for further contributors.
