Silvertone 143A Ch= 100.111

Sears, Roebuck & Co.; Chicago (IL)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Sears, Roebuck & Co.; Chicago (IL)

Year
1951 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
343127

- Brand: Silvertone

Schematics

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837672) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837673) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837674) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837675) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837676) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837677) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837678) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837679) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837680) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837681) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837682) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837683) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837684) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837685) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837686) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837687) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837688) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837689) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (3)

Silvertone 143A Ch= 100.111; Sears, Roebuck & Co. (ID = 2837671) Television — Sears, Roebuck & Co. Silvertone 143A Ch= 100.111 (2)

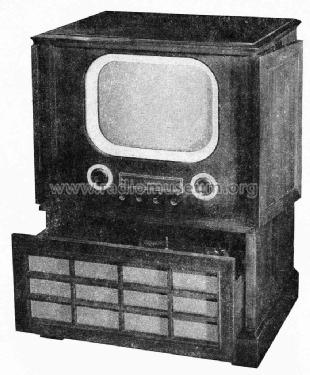

Picture from service manual.
