Silvertone 1456 Ch= 109 or 109B knobs straight
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 222750
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110 - 120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 1456 Ch= 109 or 109B [knobs straight] - Sears, Roebuck & Co.; Chicago
- Notes
-
This Sears Silvertone 1456 is the superhet with the new chassis made by Sentinel Radio instead of Colonial, with the knobs in a straight line. See details and summaries about Sears catalogs etc.

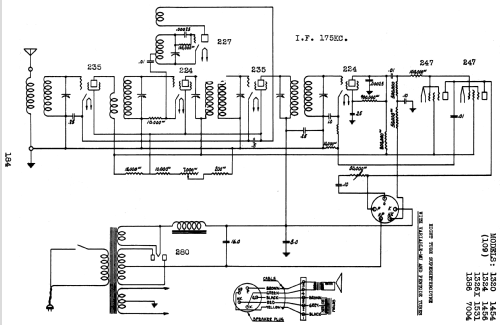

The Sears book "Service information 1928 thru 1936" shows on page 184 the same schematic for the models 1320, 1324, 1326X, 1386, 1454, 1456, 1531 and 7004. See this special text about first Silvertone superhets. Some of these Silvertone radios (1320, 1324, 1326) were available with an earlier chassis with knobs arranged in a "v" (triangle, top down) with 3 tubes 35.
- Mentioned in
- Silvertone Radios, Service Inf. 1928 thru 1936 (page 184.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
