• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90431

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 30 30 31 32 32 32 32 33

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / Dry battery "A" 3 volt & "C" batteries & "B" 3 x 45 Volt Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 8-Tube Battery Order= 57LM 1576 - Sears, Roebuck & Co.; Chicago

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 15 x 18 x 10 inch / 381 x 457 x 254 mm

• Notes

• The Sears Silvertone 1575 is a cathedral type superheterodyne with a walnut veneere and walnut finished cabinet with grille and ovelay of burl maple. "For "long and short wave reception" and "All Wave reception" means here broadcast and two short wave bands from 18 to 200 meters. "Micro-vision" 3-scale dial. Automatic volume control, one-year dry type 3-volt *A* battery.
  Order number 57LM 1576 1/4 with tubes and batteries for $ 52 or for easy payment: $ 6 "down" cash and $ 6 per month until paid $ 57.25. See details and summaries about Sears catalogs etc. The models 1571 (not to be confused with a later model 1571) and 1575 share the same chassis and schematic, but we think that alos this model has this chassis. The tubes are taken from there.
  Stein mentiones only two bands!

• Price in first year of sale
• 52.00 $

• Mentioned in
• Machine Age to Jet Age III

• Literature/Schematics (1)
• The Sears Silvertone Catalogs 1930-1942 (page 63)

• Literature/Schematics (2)

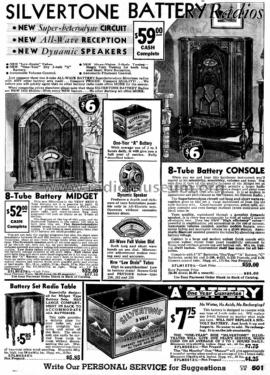

• Sears, Roebuck Catalogs (Silvertone) (#166, Spring & Summer 1933, page 501.)

• Literature/Schematics (3)
• Cathedral & Tombstone Radios (page 236.)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
