• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1934 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 241098

• • Brand: Silvertone

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 75 41 84

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

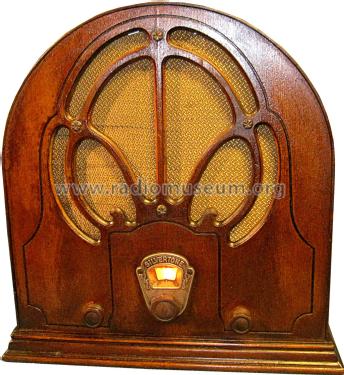

• Model: Silvertone 1706 [var. 2] - Sears, Roebuck & Co.; Chicago

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 330 x 350 x 180 mm / 13 x 13.8 x 7.1 inch

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Mentioned in
• Machine Age to Jet Age II (page 257.)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.
