Silvertone Order= 57FM 1856
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 90698
-
- Brand: Silvertone

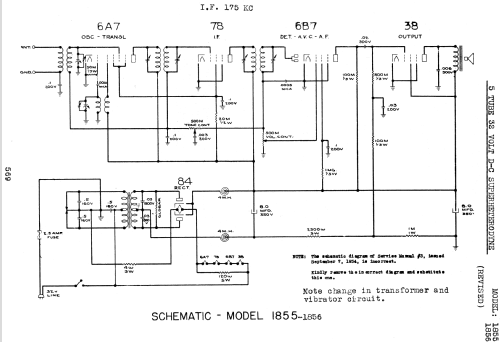

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- 31_Ballast
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Dry Batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57FM 1856 - Sears, Roebuck & Co.; Chicago
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 14 x 18 x 9.25 inch / 356 x 457 x 235 mm
- Notes
- Same chassis as in console model 1857. Ballast tube 31. Riders index mentiones the 1856 for the same page as the 1855. That is incorrect, this is Riders fault!
- Price in first year of sale
- 49.95 $
- Circuit diagram reference
- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Mentioned in
- Machine Age to Jet Age III
- Literature/Schematics (1)
- Riders 5-47, 48 ; 7-8
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 79)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (# 169, Fall & Winter 1934/35, page 535.)
- Literature/Schematics (4)
- Cathedral & Tombstone Radios (page 240.)
- Author
- Model page created by a member from D. See "Data change" for further contributors.
