• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 253343

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AT6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 2009 Ch= 132.63701, Order= 57G 2009 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 13 x 7 x 5 inch / 330 x 178 x 127 mm

• Notes

• Model	Cabinet
  2009	Charcoal Gray and Ivory
  2008	Beige and Ivory



  12BA6 RF Amp
  12BE6 Converter
  12BA6 IF Amp
  12AV6 Det / Audio
  35C5 Output
  35W4 Rectifier





• Price in first year of sale
• 28.95 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 586, Folder 13, Date July 1962)

• Literature/Schematics (2)

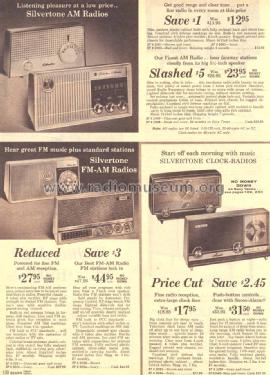

• Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1961, page 1232.)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (Winter 1962, page 130.)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.
